Weight: 165g; GPU: Quad-core Mali-450;
System Upgrade: Yes; Memory: 2G DDR3;
OS: Android; Wireless: Yes;
Bluetooth: Yes; Power: DC 5V,2A;
Model Number: XIAOMI MI BOX Global version; Remote Control: Included;
Ethernet: 1000M; GOOGLE Cast: Yes;
IPTV: No; Video Output: HDMI 2.0;
OTA Update: Yes; CPU: Amlogic S905X Quad-core 64-bit;
KODI Pre-installed: No; Internal Storage: 8GB eMMC;
Brand Name: xiaomi;
Tombing Sweep Day (From April 5th to April April 7th,Chinese time) is coming,both we and the shipping carriers will have this holiday during these days ,so the shipping and messages will be delayed some days , Thank you for king understanding.
Main Features
-
4K 60fps Video decoding and output
-
4K Support from content providers -- 4K Youtube/Netflix, First 4K Android Device for Vudu and Mgo
-
Potential HDR feature, Everything pops with HDR
-
Voice search and command (traditionally only on very high end TV product)
-
Freemium from content providers
-
HDMI Cable included
-
Amlogic Cortex-A53 Quad core Mali-450 GPU 2GB RAM 2.4/ 5G WIFI 802.11a/b/g/n/ac
-
DTS and Dolby surround sound
-
Cast your eyes wider Via Google Cast
-
Android TV 6.0
Product Details
[ Mi Box 3 ]
HDR video support
4K Android TVTM set-top box
Bluetooth voice remote included

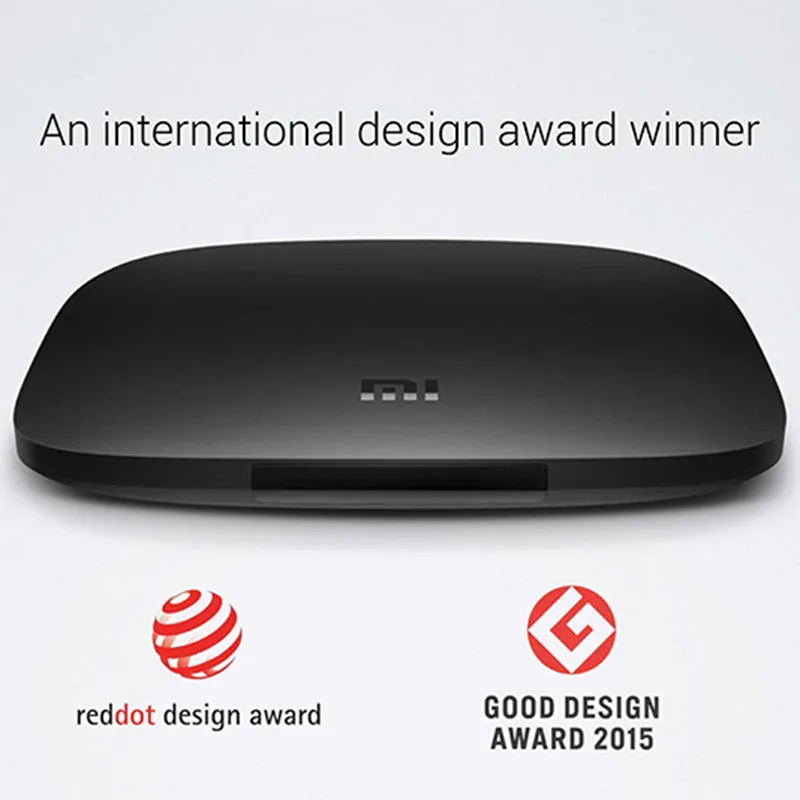

[ Award winning design ]
The sleek and innovative Mi Box design has received international acclaim and is the recipient of both
Red Dot and Good Design awards.

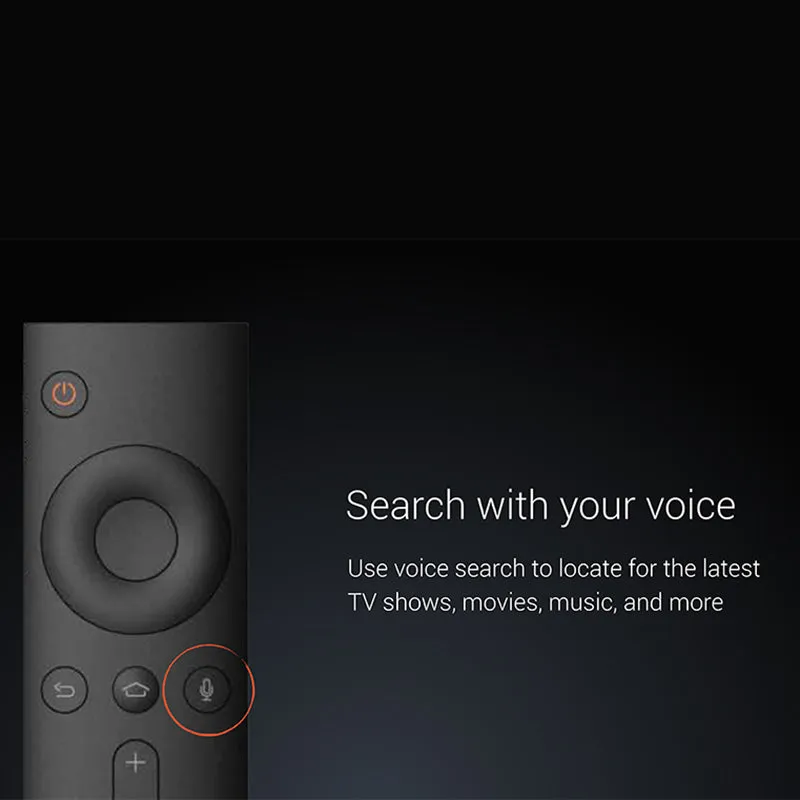

[ Say it to search it ]
A TV that listens. All you have to do is ask.
Speak into the voice remote control and Mi Boxsearches for
what you want. Ask for the best in action movies, today's weather, or the latest celebrity news!
[ Everything Pops With HDR ]
HDR is making its way to TV and the Xiaomi Mi Box.
Enjoy videos inhigh definition likenever before with selectHDR content,and
watch scenes and characters come to life in vivid color and clarity.Requires HDR TV and HDR-enabled video content.
[ Box got game ]
Housed within Mi Box is a high performance
CPU and GPU to manage a to keep you entertained.
Pair with a bluetooth gamepad, and have friends over. It's time to get your game on!
More Real Picture
Languages with MI Box 3
Specifications
| Brand |
XIAOMI ( FCCID: ZAIMRMDZ16AB ) |
| Model |
MI box 3 (MiBox Global verison Model No: MDZ-16-AB) |
| Output Resolution |
Up to 4K 60fps |
| Hardware |
CPU: Amolgic Quad core Cortex-A53 up to 2.0GHz GPU: Mali 450 up tp 750MHz RAM: 2GB DDR3 eMMC: 8GB |
| System |
Android TV 6.0 |
| Security |
Widevine L1 PlayReady 2.5 or 3.0 |
| Wireless |
Wi-Fi: 802.11a/b/g/n/ac, Dual-band Wi-Fi 2.4GHz/5GHz Bluetooth: Bluetooth 4.0/3.0 |
| Video |
VP9 Profile-2 up to 4Kx2K at 60fps H.265 HEVC MP-10 at L5.1 up to 4Kx2K at 60fps H.264 AVC HP at L5.1 up to 4Kx2K at 30fps H.264 MVC up to 1080P at 60fps Supports HDR10/HLG HDR processing |
| Sound |
Audio content sampling rates supported: 8kHz to 192kHz Audio content sample formats supported: 8-bit/16-bit/24-bit, Mono/Stereo Interfaces supported: I2S, PCM HDMI Tx audio support 7.1 channel, up to 192 KHz 24-bit PCM data and encoded bit-stream output. External CODEC I2S interface supports 16-bit/24-bit, Mono/Stereo, 8kHz to 192kHz |
| Port |
HDMI 2.0a x1 (HDCP 2.2), USB 2.0 x1; CVBS/SPDIF Out |
| Other |
Remote: Bluetooth voice remote control, powered by 2 AAA batteries Power input: 100~240V 50/60Hz input, 5.2V, 2.1A output |
| Color |
Black |
| Included accessories |
1 X Bluetooth voice remote control 1 X HDMI cable 1 X User guide |
What's in the box
- 1 X Original xiaomi Mi Box 4K Android TV Box
- 1 X Bluetooth voice remote control
- 1 X HDMI cable
- 1 X User guide
MI BOX FAQ
HOW TO CLEAR APP DATA OR CLOSE BACKGROUND APPS?
Go to “Settings”>>”Device”>>”Apps”, tap on the target app and choose “Clear data”or “Force stop”.
WHAT ARE THE STEPS FOR BOOTING MI BOX?
1) Connect the TV set and Mi Box with standard HDMI
2) Plug in to the power supply,the white indicator in front will be bright, then the Mi Box will power on automatically
3) Connect to the Wi-Fi as the initial boot guide
WHAT IS THE EFFECTIVE DISTANCE OF MI BOX BLUETOOTH REMOTE CONTROLLER?
Within 10 meters without interference.
HOW TO USE VOICE SEARCHING?
User can ask Mi Box to search the action movies, today's weather, or the latest celebrity news on any screen. As pressing the voice button as speaking into the voice remote control, then Mi Box will search for what you want.
IS MI BOX CONNECTED TO CHINA SERVERS TO UPDATE SYSTEM?
No, for overseas users, their Mi Box system update is connected to Google Server.
WHAT IS THE PROVIDER OF MI BOX VOICE SERVICE?
Google.
WHAT TO DO IF THERE IS A PROBLEM OF PRELOADED APP?
Firstly, please confirm the issue occurs on single App or all apps.
1) If it occurs on single app, re-try the app or contact app provider.
2) If it occurs on all apps, try to check the networks, Google accounts, re-try the apps and reboot the Mi box.
WHAT TO DO IF MI BOX FAILS TO SEARCH THE WI-FI ?
1) Cut off the power and re-plug then reboot the Mi Box.
2) Try to search and connect to the hotspot created by phone. If the Mi Box is ok with the hotspot, please reset the router. If the Mi Box is not working with the hotspot, please:
a) update the Mi Box system
b) Reset the Mi Box(On your screen,go to “Settings”>>”Device”>>”Storage & reset”>>”Factory data reset”)
3) If above steps fail, please contact after-sales.
WHAT TO DO IF MI BOX FAILS TO CONNECT MY BLUETOOTH DEVICES?
Android TV system supports bluetooth pairing with any bluetooth devices except phones. If you experience problem to pair both devices, please reboot and try again.
WHAT TO DO IF THERE IS AUDIO ISSUE WITH MI BOX?
The audio signal is transmitted from Mi Box to TV directly via HDMI cable. If you experience “No sound” or “Noise” in the background, please check whether the HDMI cable is properly attached to both Mi Box and TV.
HOW DO I RESET THE MI BOX?
Go to “Settings”, select and click on “Storage & reset” menu.
HOW DO I USE GOOGLE CAST WITH MI BOX?
1) Cast devices and Mi Box must be connected with the same Wifi n
